The Worker Dashboard shows the list of tasks open for each worker, separated by Worker Category.
For outsourced tasks, there are two categories - Outsourced-By Name and Outsourced-By Type.

The Worker Dashboard view shows tabs for all the categories of workers at the top. Initially no tab is opened.

• Select on any tab to view the Dashboard columns for that category. After clicking a tab, a user can see list of tasks for all the workers by its name.
• When clicked on buttons below the columns they will take the user to the master pages for internal staff, job order or factory calendar. To access the buttons click on the button.
• To see a particular task click on the task of that dashboard or click on its description the Job Order screen for that task will open on the new tab of the browser.

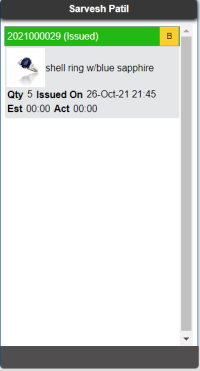

A column in the Dashboard view shows list of the open tasks for that worker.

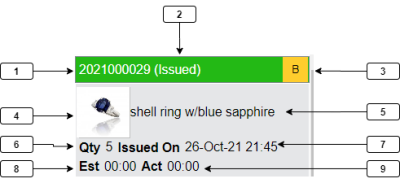

The Tasks list shows some basic details about the tasks. A task entry is shown below.

1. Job Order Id: The Id of the Job Order that contains the task.
2. Task Status: The status of the Task is shown in braces.
3. Priority: The priority of the Job Order is shown.
4. Image: The image of the Job Order design is shown.
5. Design Name: The name of the Job Order design is shown.
6. Qty: The quantity of the task is shown.
7. Issued On: The Start Date of the task is shown.
8. Est: The Estimated time for the task is shown.
9. Act: The Actual time taken to complete the task is shown.
